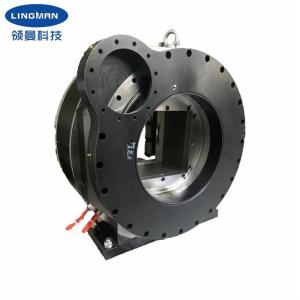

Professional Square Hole Pneumatic Laser Chuck High Precision 4 Jaw Rotary Chuck
1. Description
Our laser chuck is mainly designed for laser tube cutting machine. Laser chuck is used for clamping and feeding tubes when cutting tube. It can clamp not only round tubes, but also rectangular tube, L-shap tube, H-shape tube and so on.
It is used base point positioning and it is convenient for the adjustment of the main quipment and greatly shortens the debugging time of the main equipment. And our design is full stroke design. There's no need to adjust the jaw, it is easy to clamp and centering, to achieve switching different pipe diameters, which greatly saving clamping time.
It can realize quick clamping and loosening by rotating air intake from the side, disconnet the air source before working. It is controlled by switching single and double cylinders, which produces differentc clamping forces, which has more advantages of clamping thin-walled tubes and heavy-duty pipes. Becaus of the long length of the parts processed by the cutter, the main chuck used as the head position of laser cutting and feed chuck matched with it are usually installed in pairs on the machine.This penumatic chuck is widely used in special laser pipe cutters and other pipe processing machine system.
2. Performance Parameters
| Product name | Pneumatic rotary chuck |
| Model number | G620DF-245 |
| Claw stroke | 236mm |
| Maximum clamping force | 2.1KN |
| Alloable pressure | 0.2-0.9MPa |
| Limit speed | 150r/min |
| Clamping range | 6-242mm |
| Central height | 315mm |
| Rotational inertia | 5.2kg.㎡ |
| Rotating part weight | 120kg |
| Whole unit weight | 250kg |
Note: Above numbers are standard parameters. We can also design products according to clients' special requirements.
3. Dimensions
| Specifications | A | B | B1 | C | D | E | F | G | H | I | J | K | O | R | S |
| G620DF-245 | 420 | 315 | 624 | 662 | 220 | 60 | 380 | 403.5 | 245×245 | / | 444.5 | / | / | / | 18X22 |
4. Advantages
| a. Full stroke designed pneumatic rotary chuck |
| b. Wide range of applications, diversification of processing profiles |
| c. High repetitive positioning accuracy |
| d. Low maintenance cost, long service life |
| e. Multiple configurations are available e.1 Solid or hollow e.2 Comb-type or mortise-groove type claws |
5. Our Service
| a. We are the direct factory with good price and fast lead time. |
| b. Professional design team work with you. |
| c. Professional QC team to guarantee the high quality. |
| d. Providing OEM & ODM service. |
