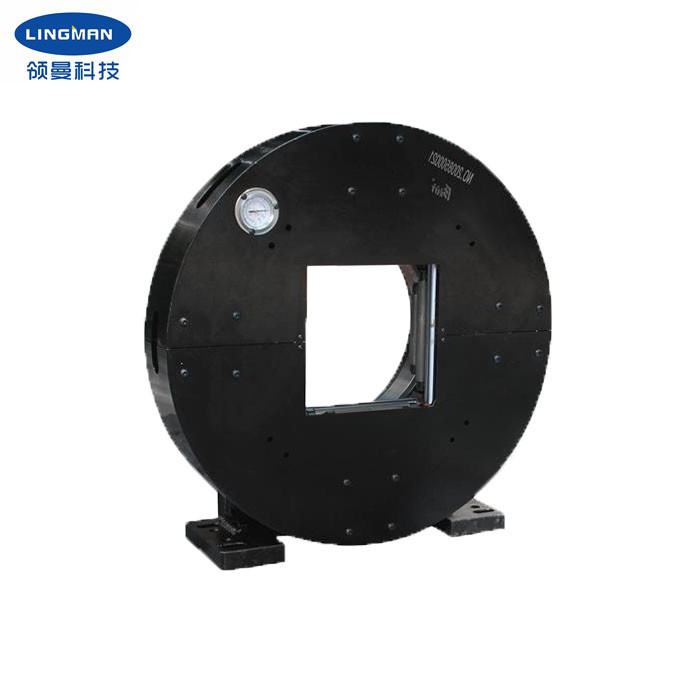

Simple Pneumatic Double-Acting Chuck For Tube-Sheet Intergrated Machines(Square Opening)
Product description
The product is specially designed for laser tube cutting equipment. The product itself can be used as an independent rotating spindle, with a chuck that can firmly clamp the workpiece while rotating. Fast clamping and loosening actions can be achieved through the side rotating air intake, and the air source has to be disconnected to work.
The product outputs by using a cylinder directly, the mechanical efficiency is high, the energy loss is small, the output clamping force is large, and the clamping force is stable. Because the cylinder is used to clamp the workpiece directly, the working stroke of the cylinder is the working stroke of the chuck, and the clamping range is wide. The cylinder is used for outputting directly, the output force and the air pressure are in linear proportion, which makes it easy to achieve software control. The chuck has a simple structure, few elements and components, light weight, low failure rate, stable performance, small moment of inertia and low energy consumption. The axial dimension of the chuck is small, and the cost for achieving zero tailings is lower.
The product is designed as a square middle hole. Compared with a round hole chuck, the size of square tube is increased and the scope of use is expanded.
Performance Parameter
| Model | Claw stroke/diameter(mm) | Maximum clamping force(kn) | Allowable pressure (MPa) | Clamping range(mm) | Central height(mm) | Rotational inertia (kg.m2) | Rotating part weight(kg) | Whole unit weight(kg) |
| G700D-270 | 154 | 1.2 | 0.25-0.9 | 16-170 | 260 | 1.72 | 89 | 144 |
