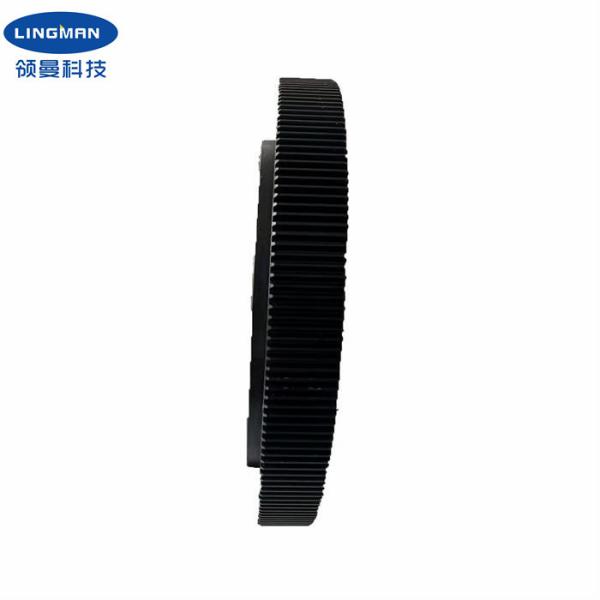

Widely Used Metal Manufacturing Steel Spur Gear Used For Laser Chuck

Brand Name : Lingman

Model Number : Laser Chuck Spur Gear

Place of Origin : Changzhou, Jiangsu, China

MOQ : 1 set

Price : USD 1500-3800/set

Payment Terms : T/T, L/C

Supply Ability : 500 sets per month

Delivery Time : 15-20 work days

Packaging Details : Wood carton

Product name : Spur gear of laser chuck

Number of teeth : 240

Machining Accuracy : 0.05 mm

Material : Steel

Color : Black

Feature : Better stable performance

Application : Rotary Laser chuck

Warranty : 1 year

Contact Now

Widely Used Metal Manufacturing Steel Spur Gear Used For Laser Chuck

1. Descripition

Machining center is developed by CNC milling machine, composed of mechanical equipment and CNC system, used for processing complex parts of high efficiency, high precision automatic machine tools.
The gear is a necessary part in the laser chuck. After the chuck base is fixed, it is only necessary to install the supporting motor and gear connection, and at the same time connected with the compressed air source to achieve clamping workpiece, drive the workpiece rotation. The gear used by laser chuck can be divided into straight gear and helical gear. Helical gear and spur gear have their own advantages. The biggest advantage of helical gears is high transmission accuracy, but from the point of view of motion smoothness (smoothness of line load curve), spur gears may even do better than helical gears. There are great differences between gears and gears, different requirements and different costs. The manufacturing cost of helical gears used in precision transmission is indeed much higher than spur gears. Gear strength has two aspects, one is tooth root strength, the other is tooth surface strength. Compared with spur gears, helical gears have higher root strength but lower tooth surface strength.


2. Performance Parameters

  • Product name
 Spur Gear
  • Number of teeth
 220
  • Machining Accuracy
 0.01mm
  • Material
 Steel
  • Color
 Black
  • Feature
 High precision
  • Application
 Laser chuck

4. Advantages

a. Full stroke designed laser rotary chuck
b. Wide range of applications, diversification of processing profiles
c. High repetitive positioning accuracy
d. Low maintenance cost, long service life

e. Multiple configurations are available
e. 1 Solid or hollow
e. 2 Comb-type or mortise-groove type claws

5. Our Service

a. We are the direct factory with good price and fast lead time.
b. Professional design team work with you.
c. Professional QC team to guarantee the high quality.
d. Providing OEM & ODM service.

Widely Used Metal Manufacturing Steel Spur Gear Used For Laser ChuckWidely Used Metal Manufacturing Steel Spur Gear Used For Laser Chuck

Widely Used Metal Manufacturing Steel Spur Gear Used For Laser ChuckWidely Used Metal Manufacturing Steel Spur Gear Used For Laser ChuckWidely Used Metal Manufacturing Steel Spur Gear Used For Laser Chuck


6.Packing & Delivery

Widely Used Metal Manufacturing Steel Spur Gear Used For Laser ChuckWidely Used Metal Manufacturing Steel Spur Gear Used For Laser Chuck


7. Production Line
Widely Used Metal Manufacturing Steel Spur Gear Used For Laser Chuck
