Professional Overloaded Pneumatic Chuck For Heavy Pipe Cutting Machine
1. Descripition

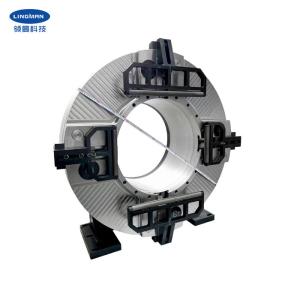

Model G900B-440 is professional pneumatic chuck for heavy-duty pipe cutting machine, it can clamp round pipe up to Φ440mm with 1000KG weight. This type of pneumatic chuck is stable in structure and it can withstand large radial force, axial force and overturning force. When working, it rotates smoothly with high accuracy and low noise.In addition, it is with light weight and small moment of inertia, so it can greatly improvde cutting efficiency and save energy,
Our laser chuck is pneumatic type and is mainly used in laser pipe cutting machine, plasma cutting machine and welding machine. It can support different shapes of pipes, such as round pipe, square pipe, rectangular pipe, L-shape pipe and H-shape pipe. It improves the cutting accuracy, rotation accuracy and repeated positioning accuracy, compared with traditional chuck. The application of laser chuck makes laser cutting more efficient and quickly.
2. Performance Parameters
| | G900B-440 |
| | 215mm |
| | 9.7KN |
| | 0.25-1.0MPa |
| | 120r/min |
| | 20-440mm |
| | 480mm |
| | 55.4Kg.m2 |
| | 454kg |
| | 642kg |

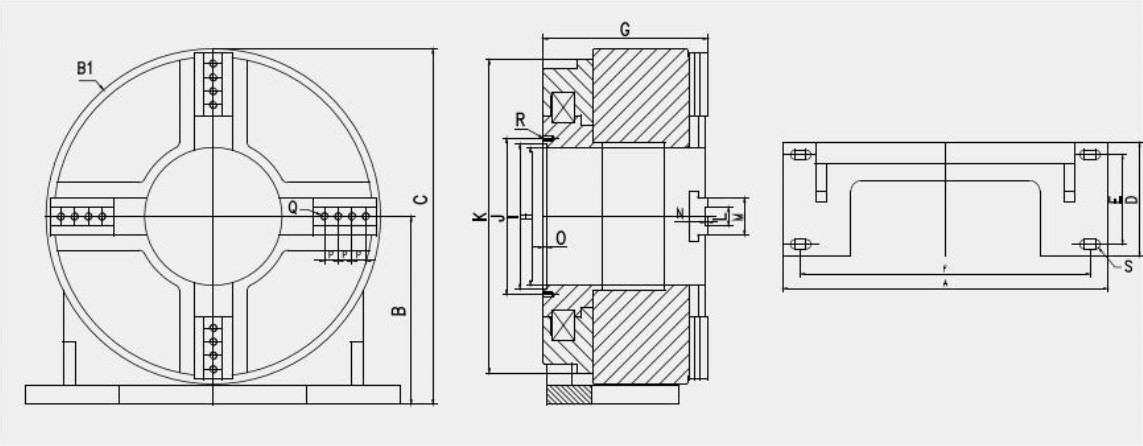

3. Dimensions
| Specifications | A | B | B1 | C | D | E | F | G | H | I | R | S |
| G900B-440 | 680 | 480 | 880 | 925 | 296 | 250 | 620 | 332 | 440 | 454 | M10 | 18 |
4. Advantages
| a. Full stroke design |
| b. Wide range of applications, diversification of processing profiles |
| c. High repetitive positioning accuracy |
| d. Low maintenance cost, long service life |
| e. Multiple configurations are available
e. 1 Solid or hollow
e. 2 Comb-type or mortise-groove type claws |
