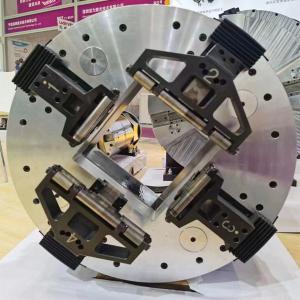

Pneumatic Rotary Main Front Chuck Single Bearing Full Stroke For Laser Pipe Cutting
1. Descripition
Our laser chuck is mainly designed for laser tube cutting machine. Laser chuck is used for clamping and feeding tubes when cutting tube. It can clamp not only round tubes, but also rectangular tube, L-shap tube, H-shape tube and so on.
It is used base point positioning and it is convenient for the adjustment of the main quipment and greatly shortens the debugging time of the main equipment. And our design is full stroke design. There's no need to adjust the jaw, it is easy to clamp and centering, to achieve switching different pipe diameters, which greatly saving clamping time.
It can realize quick clamping and loosening by rotating air intake from the side, disconnet the air source before working. It is controlled by switching single and double cylinders, which produces differentc clamping forces, which has more advantages of clamping thin-walled tubes and heavy-duty pipes. Becaus of the long length of the parts processed by the cutter, the main chuck used as the head position of laser cutting and feed chuck matched with it are usually installed in pairs on the machine.This penumatic chuck is widely used in special laser pipe cutters and other pipe processing machine system.
If you need customzied chuck, we also can provide customized plan according to your need.
2. Performance Parameters
| | G620DF-245 |
| | 236mm |
| | 2.1KN |
| | 0.2-0.9MPa |
| | 150r/min |
| | 6-242mm |
| | 315mm |
| | 5.2Kg.m2 |
| | 120kg |
| | 250kg |
3. Dimensions
| Specifications | A | B | B1 | C | D | E | F | G | H | I | R | S |
| G400DC-175 | 500 | 260 | 500 | 510 | 160 | 100 | 440 | 333 | 175 | 220 | 12-M8 | 14X24 |
4. Advantages
| a. Full stroke design |
| b. Wide range of applications, diversification of processing profiles |
| c. High repetitive positioning accuracy |
| d. Low maintenance cost, long service life |
| e. Multiple configurations are available
e. 1 Solid or hollow
e. 2 Comb-type or mortise-groove type claws |
5. Production Line
6. Our Service
| a. We are the direct factory with good price and fast lead time. |
| b. Professional design team work with you. |
| c. Professional QC team to guarantee the high quality. |
| d. Providing OEM & ODM service. |
7. FAQ
1. Can we visit your company to inspect products before delivery?
You are welcome to visit our company to inspect us and our products.
2. What's your lead time?
Within 15-35 days after confirming the order.
3.What can you buy from us?
Single bearing full stroke double-acting chuck, pneumatic connecting rod four-jaw double-action chuck, full-stroke double-action chuck, leveraged hollow(solid) four-jaw double-acting feeding chuck, double-acting chuck for professional pipe cutting machine, etc.
4. Why should you buy from us not from other suppliers?
①We are the direct factory with good price and fast lead time.
②Professional design team work with you.
③Professional QC team to guarantee the high quality.
④Providing OEM & ODM service.
5.What are your payment terms?
T/T, L/C, West Union, Paypal, etc.
