Four-Jaw Pneumatic Rotary Chuck For Laser Pipe Cutting Machine
1. Description

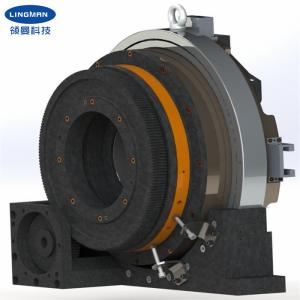

Our laser pneumatic rotary chuck is mainly designed for laser tube cutting machine. Laser chuck is used for clamping and feeding tubes when cutting tube. It can clamp not only round tubes, but also rectangular tube, L-shap tube, H-shape tube and so on. The chuck works along the full stroke, there is no need to adjust the four-jaw position, so the production efficiency can be greatly improved. This one has a chuck in the middle that can hold the workpiece firmly and rotate at the same time. After the product base is fixed, only the matching motor is added and connected with the gear, and then the compressed air source(0.1-0.9Mpa) is connected to achieve clamping work-piece and driving the work-piece to rotate.
It can realize quick clamping and loosening by rotating air intake from the side, disconnet the air source before working. This kind of pneumatic rotary chuck is controlled by switching single and double cylinders, which produces differentc clamping forces, which has more advantages of clamping thin-walled tubes and heavy-duty pipes. Because of the long length of the parts processed by the cutter, the main chuck used as the head position of laser cutting and feed chuck matched with it are usually installed in pairs on the machine.This penumatic rotary chuck is widely used in special laser pipe cutters and other pipe processing machine system.
2. Performance Parameters
| Product name | Pneumatic rotary chuck |
| Model number | G500C-225 |
| Claw stroke | 200mm |
| Maximum clamping force | 2.77KN |
| Alloable pressure | 0.1-0.9MPa |
| Limit speed | 130r/min |
| Clamping range | 0-225mm |
| Central height | 315mm |
| Rotational inertia | 6.1kg.㎡ |
| Rotating part weight | 140kg |
| Whole unit weight | 240kg |
Note: above numbers are standard parameters. We can also design products according to clients' special requirements.
3. Dimensions
| Specifications | A | B | B1 | C | D | E | F | G | H | I | J | K | O | R | S |
| G500C-225 | 670 | 315 | 694 | 672 | 100 | 60 | 640 | 273 | 225 | 235 | 250 | 400 | 10 | 8-M8 | 18X21 |
4. Advantages
| a. Full stroke designed pneumatic rotary chuck |
| b. Wide range of applications, diversification of processing profiles |
| c. High repetitive positioning accuracy |
| d. Low maintenance cost, long service life |
| e. Multiple configurations are available e.1 Solid or hollow e.2 Comb-type or mortise-groove type claws |
