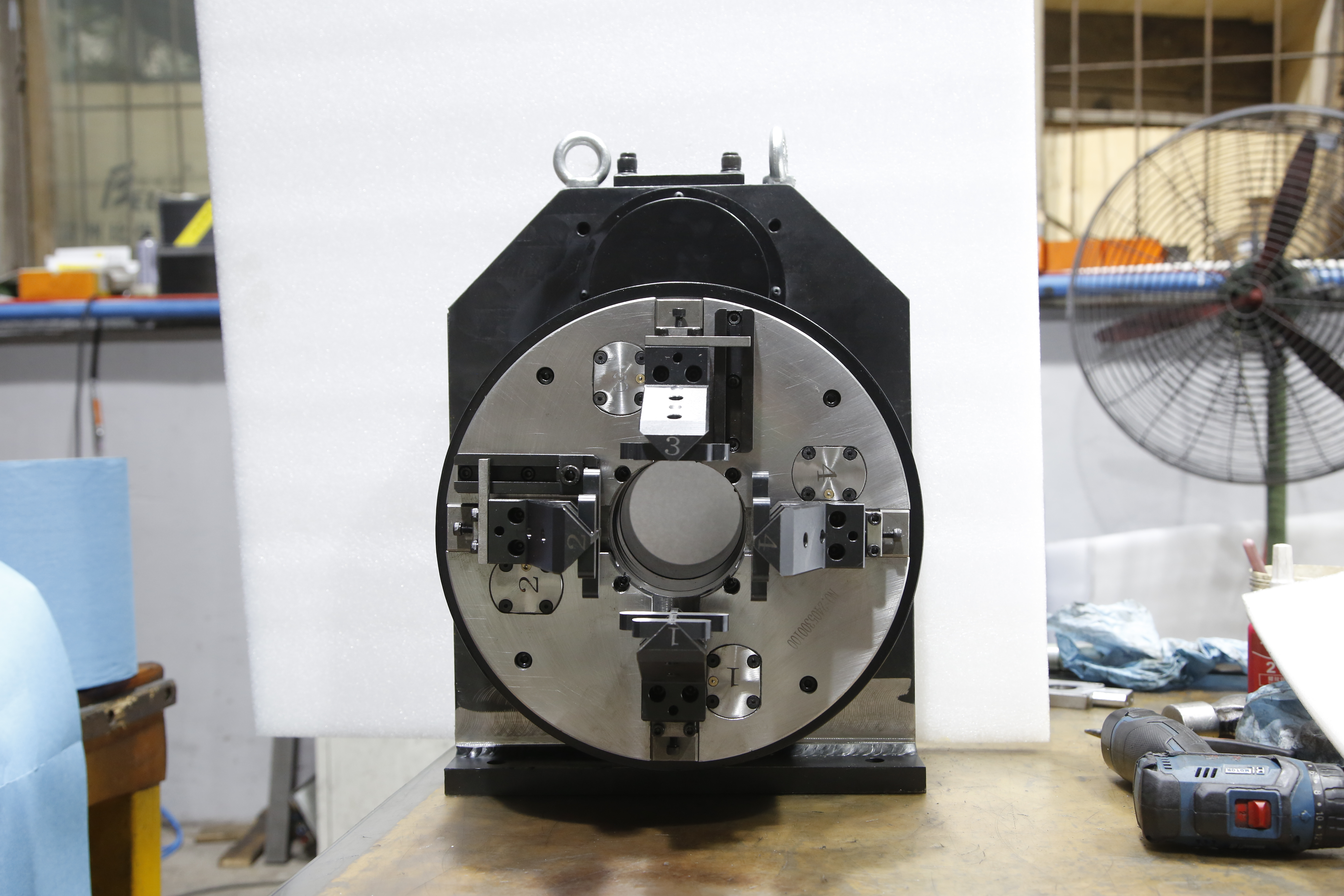

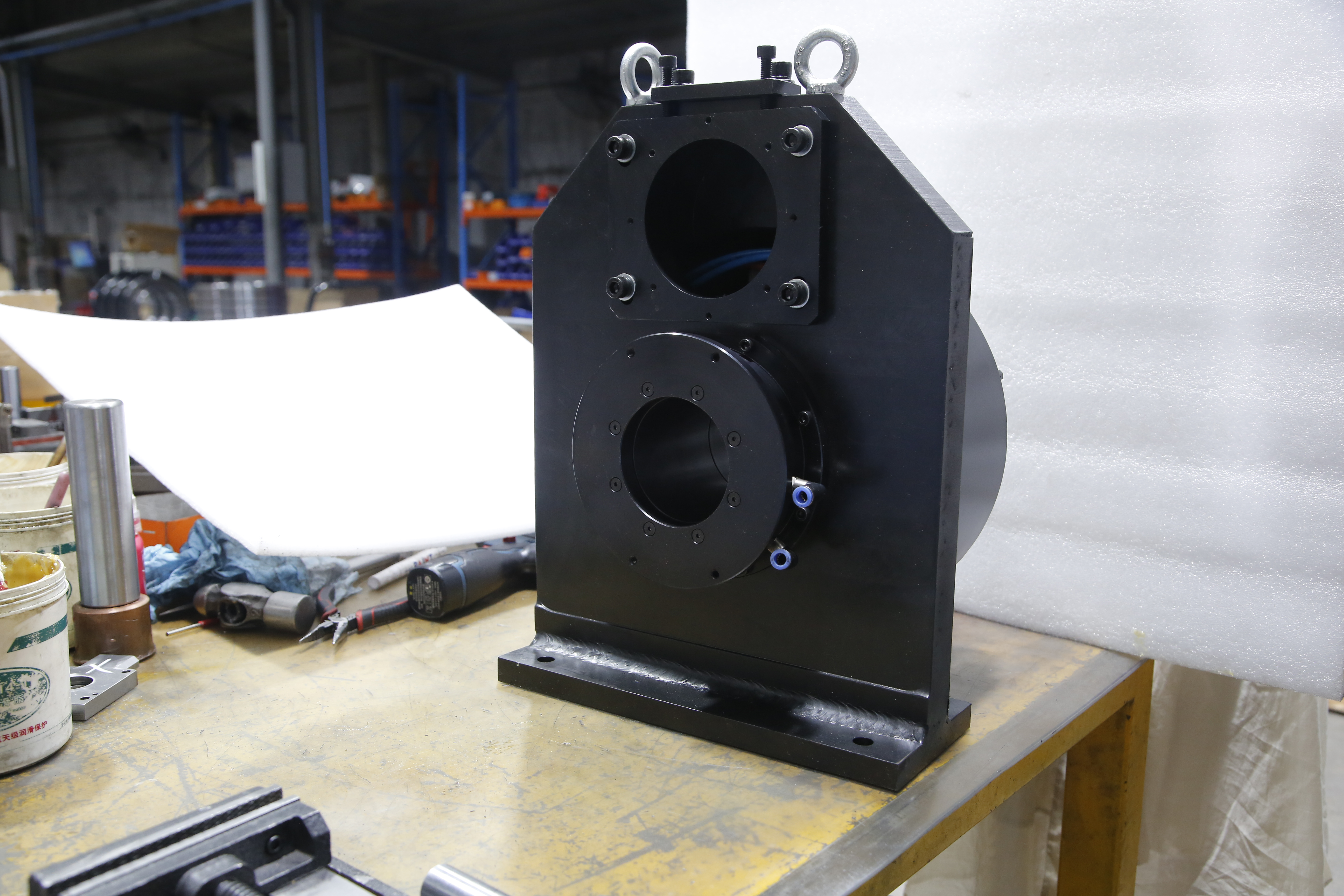

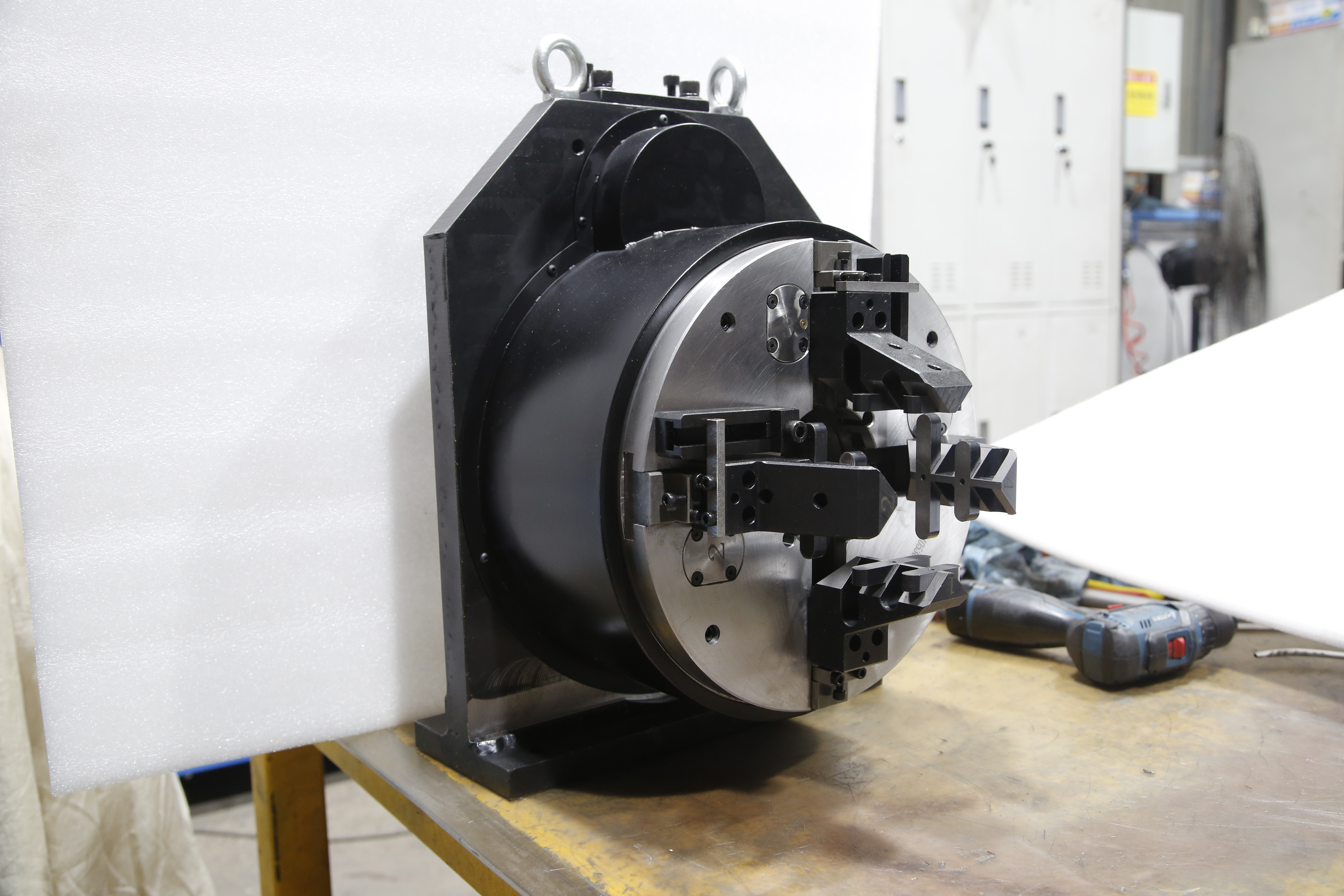

Steel Laser Chuck 90 Pulling Chuck For Round Tube Laser Fully Enclosed Integrated Rear Chuck Front Chuck

Lingman Machinery Technology (Changzhou) Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Steel Laser Chuck 90 Pulling Chuck For Round Tube Laser Fully Enclosed Integrated Rear Chuck Front Chuck

Brand Name : Lingman

Model Number : 90BF

Certification : ISO9001:2015

Place of Origin : China

MOQ : 1

Price : 2700USD

Payment Terms : D/P, L/C, D/A, T/T, Western Union, MoneyGram

Supply Ability : 500 sets per month

Delivery Time : 15 days

Packaging Details : Wooden Box

Application : Laser Cutting

Core Components : Bearing

Number of Jaws : 4

Jaw stroke/diameter : 91mm

Maximum clamping force : 0.6KN

Allowable pressure : 0.3-0.9MPa

Clamping range : 5-91mm

Central height : 200mm

Rotational inertia : 0.3kg.m²

Rotating part weight : 40kg

Whole unit weight : 85kg

Contact Now

1. Description

Lingman MachineryTechnology (Changzhou) Co., Ltd. is an enterprise specializing in the research,
development, production and sales of various special power chucks for laser pipe cutting machines,
pneumatic chucks, electric chucks,hydraulic chucks, digital chucks and other power chucks.Ling-
man has a professional R&D team with over ten years of industry technology and innovative design
capabilities.
Since its establishment, the company has passed the ISO9001:2015quality management system
certification and has obtained multiple patents (including invention patents and utility model pat-
ents).The professional technical research and development team has been preparing to become a
high-tech enterprise in Jiangsu from the early stage of enterprise operation.Lingman Technology's
products have gradually entered the domestic and international laser cutting market, contributing
to China's intelligence.
Guided by the core values of "responsibility, leadership, and breakthrough" in the industry, we will
continue to innovate in science and technology, and strive to achieve high-quality development
led by China's intelligent manufacturing technology in the world.

2. Performance Parameters

    • Product name
    Laser chuck
    • Model number
    F90BF
    • Jaw stroke
    86mm
    • Maximunm clamping force
    0.6KN
    • Allowable pressure
    0.3-0.9MPa
    • Clamping range
    5-91mm
    • Central height
    200mm
    • Rotational inertia
    0.3Kg.m2
    • Rotating part weight
    40kg
    • Whole unit weight
    85kg

Steel Laser Chuck 90 Pulling Chuck For Round Tube Laser Fully Enclosed Integrated Rear Chuck Front ChuckSteel Laser Chuck 90 Pulling Chuck For Round Tube Laser Fully Enclosed Integrated Rear Chuck Front ChuckSteel Laser Chuck 90 Pulling Chuck For Round Tube Laser Fully Enclosed Integrated Rear Chuck Front Chuck

3. Our Service

1. Professional manufacturer of laser chuck over 20 years.
2. Professional design team work with you.

3. Professional QC team to guarantee the high quality.

4. Providing OEM & ODM service.

5. Best service from saling to after saling.

4. Our Factory

Steel Laser Chuck 90 Pulling Chuck For Round Tube Laser Fully Enclosed Integrated Rear Chuck Front Chuck

4. Packaging

Steel Laser Chuck 90 Pulling Chuck For Round Tube Laser Fully Enclosed Integrated Rear Chuck Front Chuck
